  • DIJET SICM-3100-S100 Milling Cutter 90.0° 1.000 Cutter Diameter Round 1.250 Shank 5.000 OAL 3 Flute

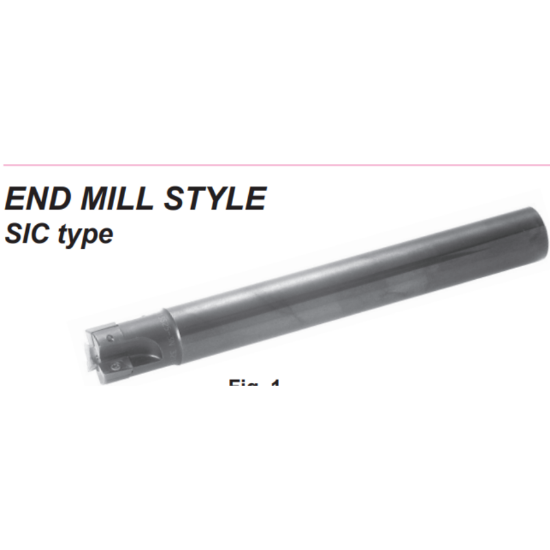

Picture of DIJET SICM-3100-S100 Milling Cutter 90.0° 1.000 Cutter Diameter Round 1.250 Shank 5.000 OAL 3 Flute

DIJET SICM-3100-S100 Milling Cutter 90.0° 1.000 Cutter Diameter Round 1.250 Shank 5.000 OAL 3 Flute

ANSI: SICM-3100-S100

ISO: SICM-3100-S100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSICM-3100-S100
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Overall Len 5.0000 127.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Neck Length 2.7200 69.09MM
Insert Size Ic 13
Flutes/Inserts 3
Depth Of Cut Max 0.5000
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style ZP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw A2301-2364-1
