  • DIJET SICM-2075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 0.750 Shank 5.000 OAL 2 Flute

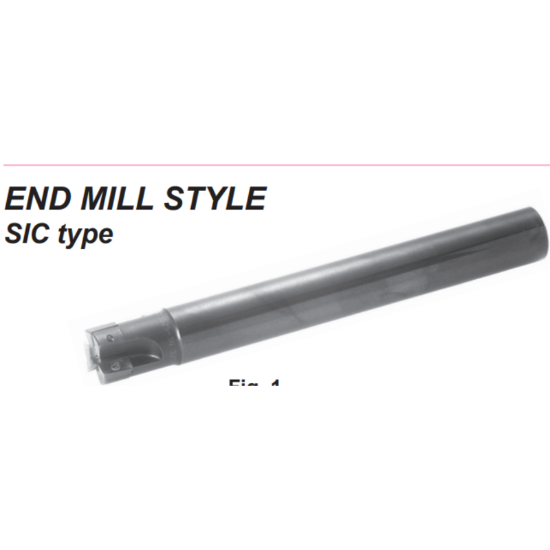

Picture of DIJET SICM-2075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 0.750 Shank 5.000 OAL 2 Flute

DIJET SICM-2075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 0.750 Shank 5.000 OAL 2 Flute

ANSI: SICM-2075-S075

ISO: SICM-2075-S075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSICM-2075-S075
Delivery date: 3-5 days
$219.56
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Semi Finishing, Roughing
Made In USA No
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Overall Len 5.0000 127.00MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.5000
Tool Material Steel
Flutes/Inserts 2
Neck Length 2.9700 75.44MM
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Insert Size Ic 13
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style ZP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw A2301-2364-1
