  • DIJET SICM-2062-S062 Milling Cutter 90.0° 0.625 Cutter Diameter Round 0.625 Shank 4.000 OAL 2 Flute

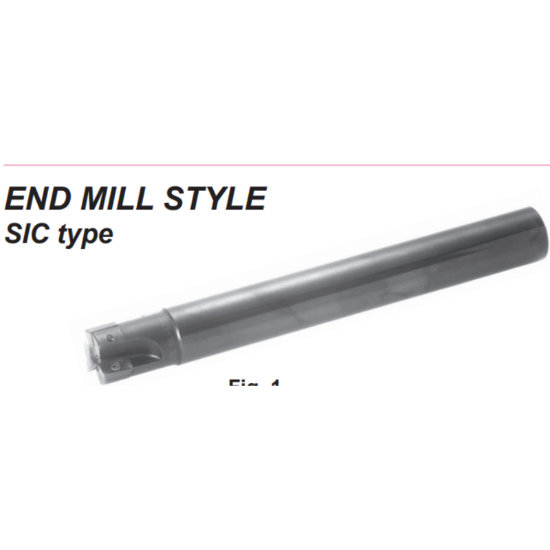

Picture of DIJET SICM-2062-S062 Milling Cutter 90.0° 0.625 Cutter Diameter Round 0.625 Shank 4.000 OAL 2 Flute

DIJET SICM-2062-S062 Milling Cutter 90.0° 0.625 Cutter Diameter Round 0.625 Shank 4.000 OAL 2 Flute

ANSI: SICM-2062-S062

ISO: SICM-2062-S062

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSICM-2062-S062
Delivery date: 3-5 days
$192.12
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Pocket Milling, Ramp Milling, Side Milling, Slot Milling, Face Milling
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Neck Length 1.9700 50.04MM
Tool Material Steel
Insert Size Ic 10
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
Machine Side Connection Size 0.6250 15.88MM
Depth Of Cut Max 0.4000
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style ZP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw EWS-206
