  • DIJET SICL-3075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 1.000 Shank 7.000 OAL 3 Flute

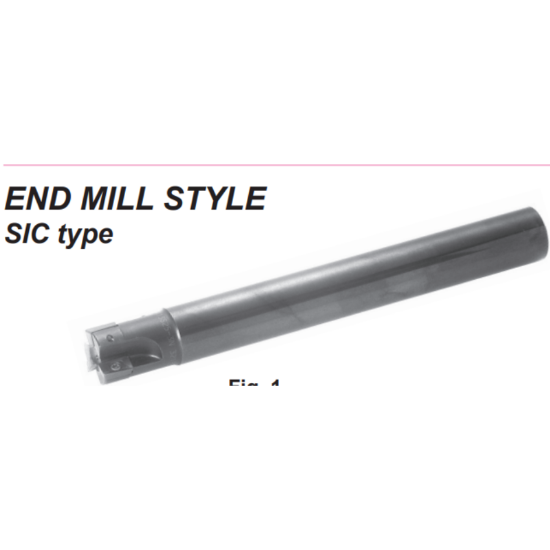

Picture of DIJET SICL-3075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 1.000 Shank 7.000 OAL 3 Flute

DIJET SICL-3075-S075 Milling Cutter 90.0° 0.750 Cutter Diameter Round 1.000 Shank 7.000 OAL 3 Flute

ANSI: SICL-3075-S075

ISO: SICL-3075-S075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSICL-3075-S075
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Ramp Milling, Side Milling, Pocket Milling
Shipping State Michigan
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.4000
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Tool Material Steel
Neck Length 4.0000 101.60MM
Overall Len 7.0000 177.80MM
Cutting & Machining Properties
Insert Style ZP
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw EWS-206
