  • DIJET SEC-2200-3.0-N2NPowder Metal Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter Putnam 2.000 Shank 7.000 OAL 8 Flute

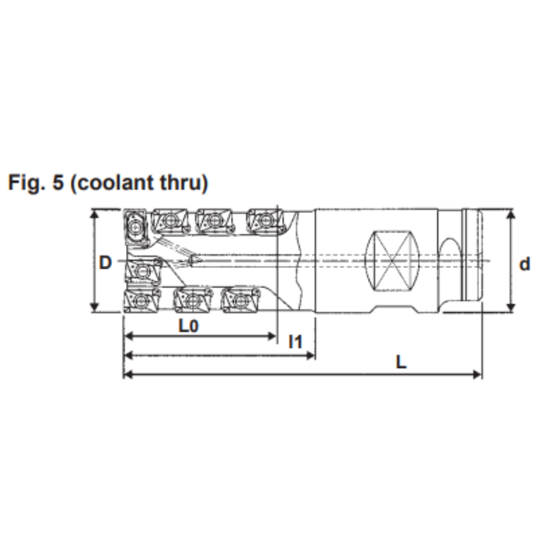

Picture of DIJET SEC-2200-3.0-N2NPowder Metal Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter Putnam 2.000 Shank 7.000 OAL 8 Flute

DIJET SEC-2200-3.0-N2NPowder Metal Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter Putnam 2.000 Shank 7.000 OAL 8 Flute

ANSI: SEC-2200-3.0-N2NPM

ISO: SEC-2200-3.0-N2NPM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSEC-2200-3.0-N2NPM
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Drilling, Pocket Milling, Plunge Milling, Shoulder Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Flutes/Inserts 8
Machine Side Connection Size 2.0000 50.80MM
Tool Material Steel
Machine Side Connection Type Putnam
Dimension Description 2.000 x 2.000 x 3.000 x 7.000
Shank/Pilot Dia 2.0000 50.80MM - 2
Overall Len 7.0000 177.80MM
Insert Size Ic 18
Depth Of Cut Max 3.0000
Length Of Cut 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style ZD,ZP
Fasteners & Connectors
Insert Screw DSW-4510H
