  • DIJET SEC-2150-4.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.500 Shank 8.500 OAL 10 Flute

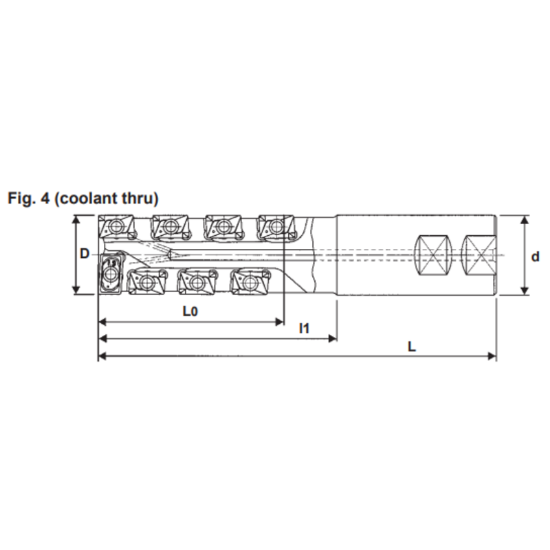

Picture of DIJET SEC-2150-4.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.500 Shank 8.500 OAL 10 Flute

DIJET SEC-2150-4.5-S125 Milling Cutter 90.0°, Drill Mill 1.500 Cutter Diameter Weldon 1.500 Shank 8.500 OAL 10 Flute

ANSI: SEC-2150-4.5-S125

ISO: SEC-2150-4.5-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSEC-2150-4.5-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Shoulder Milling, Slot Milling, Pocket Milling, Drilling, Ramp Milling, Side Milling, Plunge Milling
Shipping State Michigan
Insert/Tool Tool
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Length Of Cut 4.5000 114.30MM
Tool Material Steel
Depth Of Cut Max 4.5000
Overall Len 8.5000 215.90MM
Flutes/Inserts 10
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Dimension Description 1.500 x 1.500 x 4.500 x 8.500
Insert Size Ic 19
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style ZD,ZP
Fasteners & Connectors
Insert Screw DSW-4510H
