  • DIJET SEC-2125-3.0-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 6.500 OAL 10 Flute

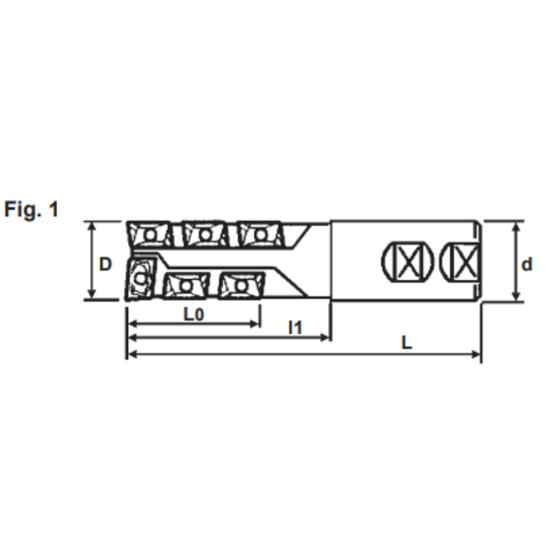

Picture of DIJET SEC-2125-3.0-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 6.500 OAL 10 Flute

DIJET SEC-2125-3.0-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 6.500 OAL 10 Flute

ANSI: SEC-2125-3.0-S125

ISO: SEC-2125-3.0-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSEC-2125-3.0-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Shoulder Milling, Plunge Milling, Ramp Milling, Side Milling, Slot Milling, Drilling
Insert Type Positive
Shipping State Michigan
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Dimensional Specifications
Tool Material Steel
Dimension Description 1.250 x 1.250 x 3.000 x 6.500
Depth Of Cut Max 3.0000
Length Of Cut 3.0000 76.20MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 6.5000 165.10MM
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Flutes/Inserts 10
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style ZD,ZP
Fasteners & Connectors
Insert Screw TSW-408
