  • DIJET SEC-2125-2.0-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 5.000 OAL 6 Flute

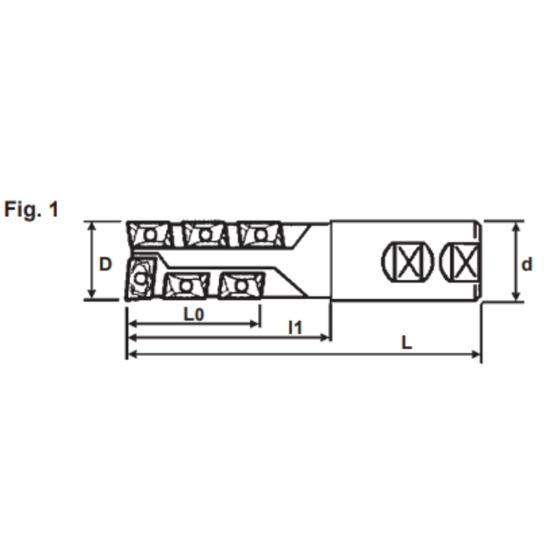

Picture of DIJET SEC-2125-2.0-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 5.000 OAL 6 Flute

DIJET SEC-2125-2.0-S125 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Weldon 1.250 Shank 5.000 OAL 6 Flute

ANSI: SEC-2125-2.0-S125

ISO: SEC-2125-2.0-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSEC-2125-2.0-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Plunge Milling, Shoulder Milling, Ramp Milling, Slot Milling, Drilling, Pocket Milling, Side Milling
Shipping State Michigan
Package Size 1
Made In USA No
Insert Application Roughing, Semi Finishing
Dimensional Specifications
Insert Size Ic 16
Depth Of Cut Max 2.0000
Cutter Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 6
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Dimension Description 1.250 x 1.250 x 2.000 x 5.000
Machine Side Connection Type Weldon
Overall Len 5.0000 127.00MM
Length Of Cut 2.0000 50.80MM
Cutting & Machining Properties
Insert Style ZD,ZP
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw TSW-408
