  • DIJET SEC-2100-1.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 4.000 OAL 4 Flute

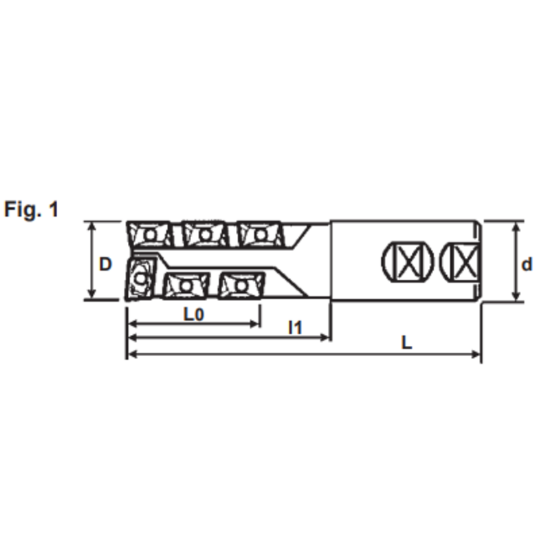

Picture of DIJET SEC-2100-1.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 4.000 OAL 4 Flute

DIJET SEC-2100-1.0-S100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter Weldon 1.000 Shank 4.000 OAL 4 Flute

ANSI: SEC-2100-1.0-S100

ISO: SEC-2100-1.0-S100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJSEC-2100-1.0-S100
Delivery date: 3-5 days
$343.07
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Drilling, Pocket Milling, Ramp Milling, Side Milling, Shoulder Milling, Slot Milling, Plunge Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 1.0000
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Dimension Description 1.000 x 1.000 x 1.000 x 4.000
Insert Size Ic 13
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style ZD,ZP
Fasteners & Connectors
Insert Screw DWS-307H
