  • DIJET MSW-2100-M12 Milling Cutter Ball Mill 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 2 Flute

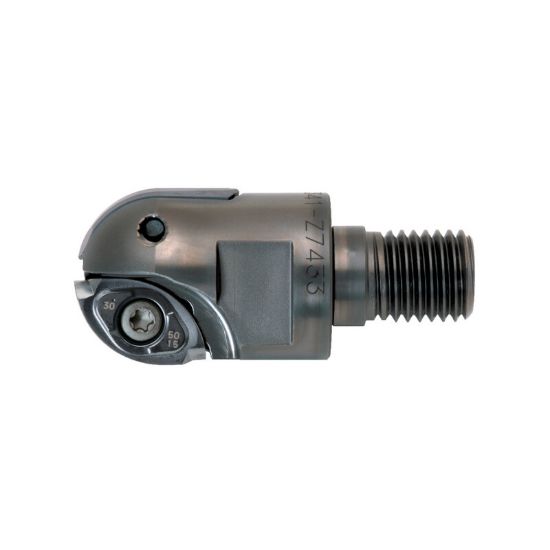

Picture of DIJET MSW-2100-M12 Milling Cutter Ball Mill 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 2 Flute

DIJET MSW-2100-M12 Milling Cutter Ball Mill 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 2 Flute

ANSI: MSW-2100-M12

ISO: MSW-2100-M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMSW-2100-M12
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Finishing, Semi Finishing
Insert Type Positive
Application Profile Milling, Copy Milling
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Overall Len 1.3800 35.05MM
Tool Material Steel
Insert Size Ic 210
Depth Of Cut Max 0.9400
Cutter Dia 1.0000 25.40MM
Length Of Cut 0.9400 23.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW
Fasteners & Connectors
Insert Screw DSW-4085
