  • DIJET MSW-2075-M10 Milling Cutter Ball Mill 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 2 Flute

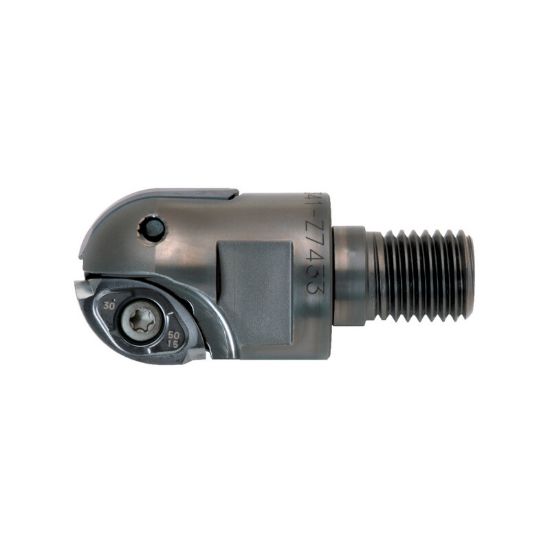

Picture of DIJET MSW-2075-M10 Milling Cutter Ball Mill 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 2 Flute

DIJET MSW-2075-M10 Milling Cutter Ball Mill 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 2 Flute

ANSI: MSW-2075-M10

ISO: MSW-2075-M10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMSW-2075-M10
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Made In USA No
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Machine Side Connection Type Screw On
Length Of Cut 0.7000 17.78MM
Depth Of Cut Max 0.7000
Machine Side Connection Size M10
Overall Len 1.1800 29.97MM
Insert Size Ic 20
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Insert Style SW
Fasteners & Connectors
Insert Screw DSW-307H
