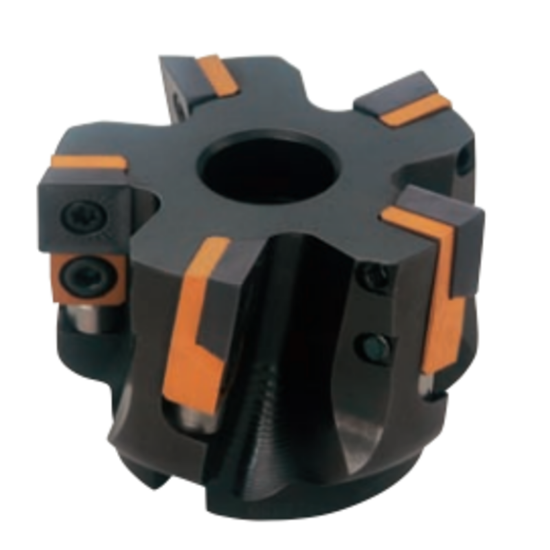

Picture of DIJET MIG-6300-100R Milling Cutter 90.0° 3.000 Cutter Diameter Face Mill 2.000 OAL 6 Flute

DIJET MIG-6300-100R Milling Cutter 90.0° 3.000 Cutter Diameter Face Mill 2.000 OAL 6 Flute

ANSI: MIG-6300-100R

ISO: MIG-6300-100R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMIG-6300-100R
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Face Milling, Side Milling
Shipping State Michigan
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 6
Insert Size Ic 12
Cutter Dia 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Fasteners & Connectors
Insert Screw EXW-412
