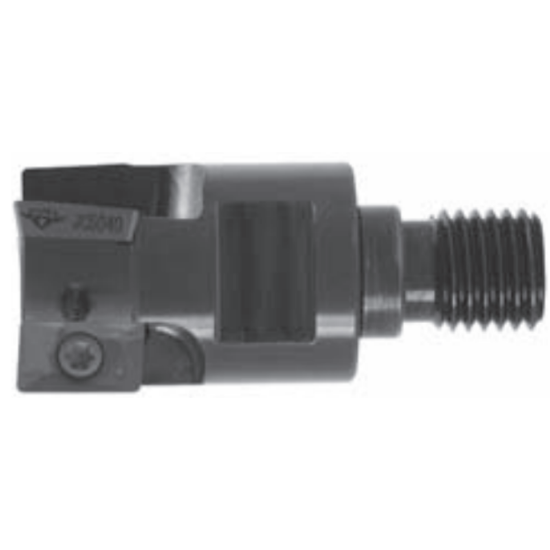

Picture of DIJET MIC-3075-M10 Milling Cutter 90.0° 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 3 Flute

DIJET MIC-3075-M10 Milling Cutter 90.0° 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 3 Flute

ANSI: MIC-3075-M10

ISO: MIC-3075-M10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMIC-3075-M10
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Type Positive
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Machine Side Connection Size M10
Depth Of Cut Max 0.4000
Machine Side Connection Type Screw On
Flutes/Inserts 3
Insert Size Ic 10
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Overall Len 1.1800 29.97MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style ZP
Fasteners & Connectors
Insert Screw EWS-206
