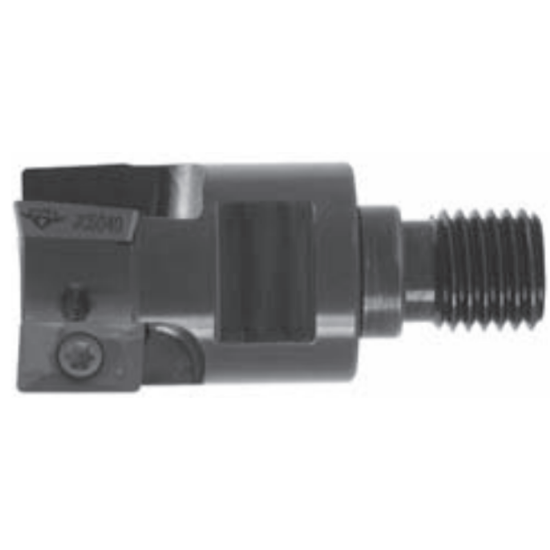

Picture of DIJET MIC-2100-M12 Milling Cutter 90.0° 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 2 Flute

DIJET MIC-2100-M12 Milling Cutter 90.0° 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 2 Flute

ANSI: MIC-2100-M12

ISO: MIC-2100-M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMIC-2100-M12
Delivery date: 3-5 days
$287.51
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Face Milling, Slot Milling, Ramp Milling, Side Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Insert Size Ic 16
Depth Of Cut Max 0.6000
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Overall Len 1.3800 35.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style ZP
Fasteners & Connectors
Insert Screw TSW-408
