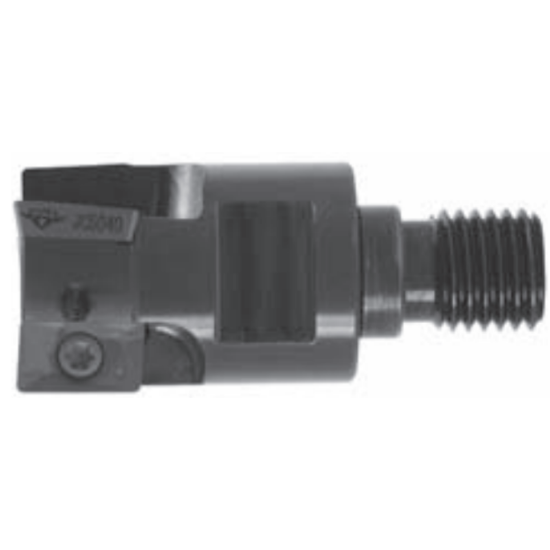

Picture of DIJET MIC-2075-M10 Milling Cutter 90.0° 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 2 Flute

DIJET MIC-2075-M10 Milling Cutter 90.0° 0.750 Cutter Diameter Screw On M10 Shank 1.180 OAL 2 Flute

ANSI: MIC-2075-M10

ISO: MIC-2075-M10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMIC-2075-M10
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Side Milling, Slot Milling, Pocket Milling, Face Milling
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Package Size 1
Dimensional Specifications
Machine Side Connection Type Screw On
Machine Side Connection Size M10
Overall Len 1.1800 29.97MM
Depth Of Cut Max 0.5000
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Insert Size Ic 13
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style ZP
Fasteners & Connectors
Insert Screw A2301-2364-1
