  • DIJET MEC-2125-M16 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Screw On M16 Shank 1.690 OAL 2 Flute

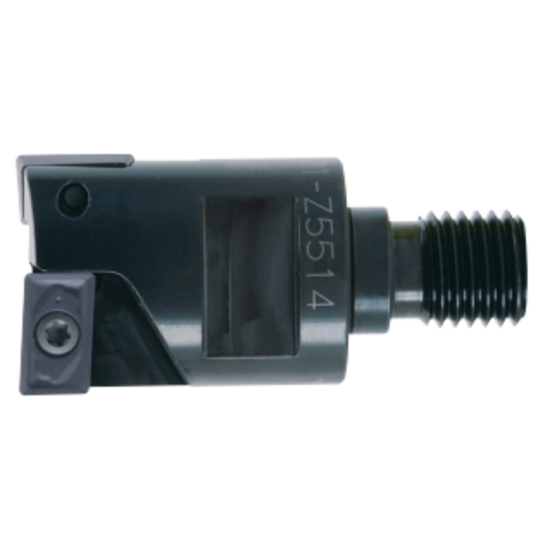

Picture of DIJET MEC-2125-M16 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Screw On M16 Shank 1.690 OAL 2 Flute

DIJET MEC-2125-M16 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter Screw On M16 Shank 1.690 OAL 2 Flute

ANSI: MEC-2125-M16

ISO: MEC-2125-M16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMEC-2125-M16
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Plunge Milling, Shoulder Milling, Drilling, Pocket Milling
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Package Size 1
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.6000
Tool Material Steel
Machine Side Connection Type Screw On
Machine Side Connection Size M16
Flutes/Inserts 2
Overall Len 1.6900 42.93MM
Length Of Cut 0.6000 15.24MM
Insert Size Ic 16
Cutter Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Insert Style ZD,ZP
Fasteners & Connectors
Insert Screw TSW-408
