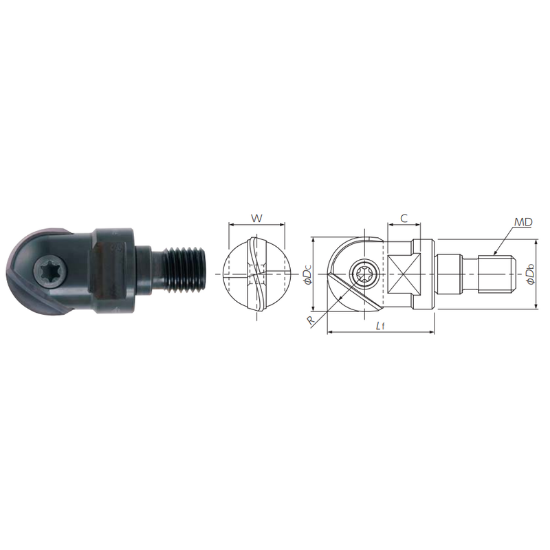

Picture of DIJET MBN-250-M12 Ball Mill 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 1 Flute

DIJET MBN-250-M12 Ball Mill 1.000 Cutter Diameter Screw On M12 Shank 1.380 OAL 1 Flute

ANSI: MBN-250-M12

ISO: MBN-250-M12

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMBN-250-M12
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Neutral
Insert Application Semi Finishing, Finishing
Made In USA No
Insert/Tool Tool
Application Copy Milling, Profile Milling
Shipping State Michigan
Dimensional Specifications
Flutes/Inserts 1
Insert Size Ic 100250
Tool Material Steel
Overall Len 1.3800 35.05MM
Cutter Dia 1.0000 25.40MM, 0.9840 24.99MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style BM,BN
Fasteners & Connectors
Insert Screw FSW-6020
