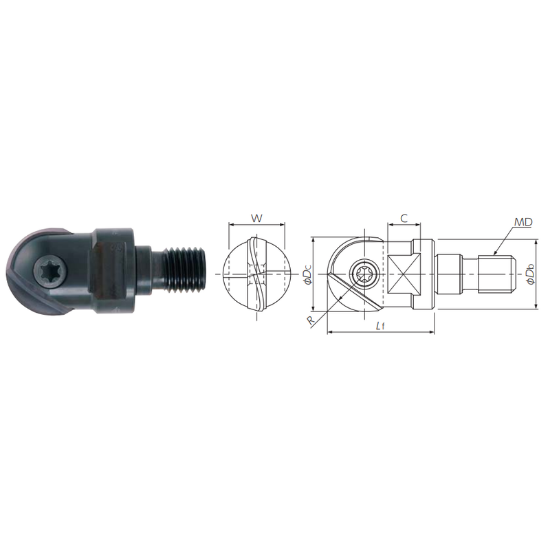

Picture of DIJET MBN-200-M10-H Ball Mill 0.750 Cutter Diameter Screw On M10 Shank 1.160 OAL 1 Flute

DIJET MBN-200-M10-H Ball Mill 0.750 Cutter Diameter Screw On M10 Shank 1.160 OAL 1 Flute

ANSI: MBN-200-M10-H

ISO: MBN-200-M10-H

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJMBN-200-M10-H
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Made In USA No
Insert Type Neutral
Insert Application Semi Finishing, Finishing
Application Copy Milling, Profile Milling
Shipping State Michigan
Package Size 1
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 1
Machine Side Connection Size M10
Cutter Dia 0.7500 19.05MM, 0.7870 19.99MM
Insert Size Ic 750200
Machine Side Connection Type Screw On
Overall Len 1.1600 29.46MM
Cutting & Machining Properties
Insert Style BN
Insert Shape/Cutter Pocket Shape Flat Blade
Fasteners & Connectors
Insert Screw FSW-5016
