  • DIJET EXM-6063R-SM-22 Feed Mill,End Mill 2.480 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 6 Flute

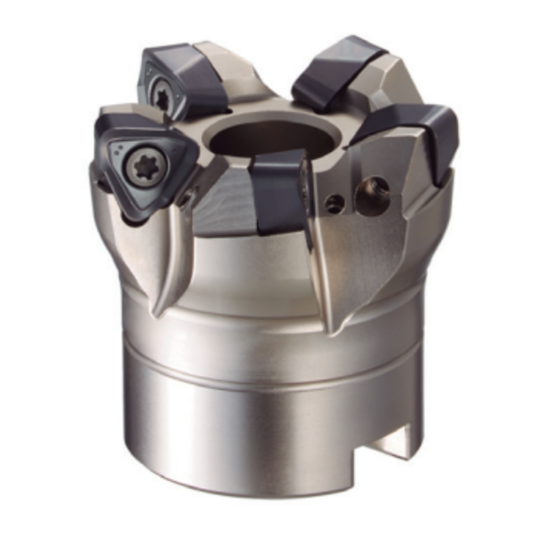

Picture of DIJET EXM-6063R-SM-22 Feed Mill,End Mill 2.480 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 6 Flute

DIJET EXM-6063R-SM-22 Feed Mill,End Mill 2.480 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 6 Flute

ANSI: EXM-6063R-SM-22

ISO: EXM-6063R-SM-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJEXM-6063R-SM-22
Delivery date: 3-5 days
$346.04
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Shipping State Michigan
Package Size 1
Application Feed Milling, Pocket Milling, Ramp Milling
Insert/Tool Tool
Insert Type Negative
Made In USA No
Dimensional Specifications
Depth Of Cut Max 0.9800
Overall Len 1.9685 50.00MM
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 2.4800 62.99MM
Insert Size Ic 7
Flutes/Inserts 6
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style WN
Max Ramp Angle 0.80°
Insert Shape/Cutter Pocket Shape Trigon
Fasteners & Connectors
Insert Screw TSW-410H
