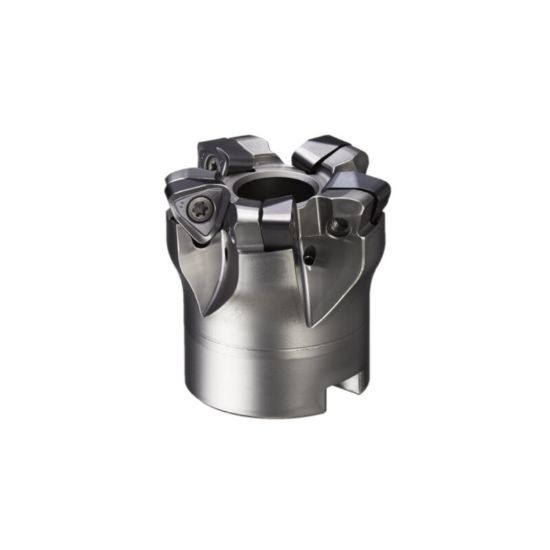

Picture of DIJET EXM-5052R-HF-22 Feed Mill 2.047 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 5 Flute

DIJET EXM-5052R-HF-22 Feed Mill 2.047 Cutter Diameter Face Mill 0.866 Shank 1.968 OAL 5 Flute

ANSI: EXM-5052R-HF-22

ISO: EXM-5052R-HF-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJEXM-5052R-HF-22
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Ramp Milling, Slot Milling, Copy Milling, Feed Milling, Face Milling
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Shipping State Michigan
Package Size 1
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Cutter Dia 2.0470 51.99MM
Depth Of Cut Max 0.0790
Tool Material Steel
Flutes/Inserts 5
Insert Size Ic 7
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Insert Style WN
Insert Shape/Cutter Pocket Shape Trigon
Max Ramp Angle 1.20°
Fasteners & Connectors
Insert Screw TSW-410H
