Picture of DIJET EXM-3150-HF-4.75-S125LG Feed Mill 1.500 Cutter Diameter Round 1.250 Shank 8.000 OAL 3 Flute

DIJET EXM-3150-HF-4.75-S125LG Feed Mill 1.500 Cutter Diameter Round 1.250 Shank 8.000 OAL 3 Flute

ANSI: EXM-3150-HF-4.75-S125LG

ISO: EXM-3150-HF-4.75-S125LG

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJEXM-3150-HF-4.75-S125LG
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Shipping State Michigan
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Package Size 1

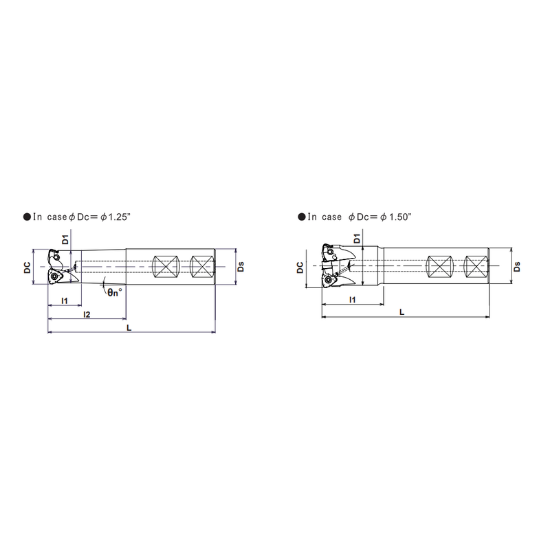

Dimensional Specifications
Overall Len 8.0000 203.20MM
Tool Material Steel
Depth Of Cut Max 0.0790
Neck Length 4.7500 120.65MM
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 7
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WN
Max Ramp Angle 2.00°
Fasteners & Connectors
Insert Screw TSW-410H
