  • DIJET DDM-2100AR-5.9-S125 Milling Cutter Button Cutter 1.000 Cutter Diameter Weldon 1.250 Shank 8.190 OAL 2 Flute

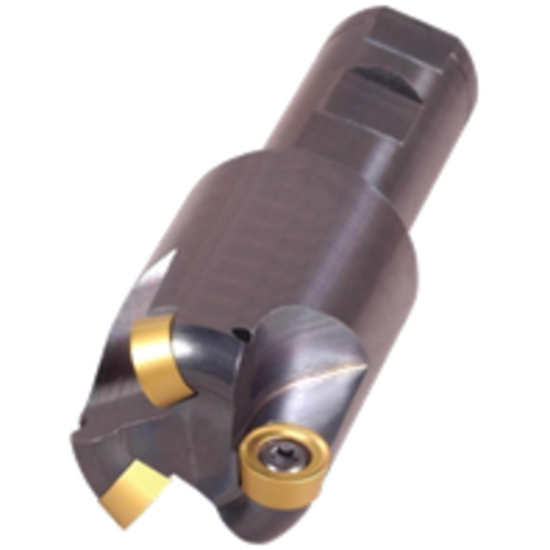

Picture of DIJET DDM-2100AR-5.9-S125 Milling Cutter Button Cutter 1.000 Cutter Diameter Weldon 1.250 Shank 8.190 OAL 2 Flute

DIJET DDM-2100AR-5.9-S125 Milling Cutter Button Cutter 1.000 Cutter Diameter Weldon 1.250 Shank 8.190 OAL 2 Flute

ANSI: DDM-2100AR-5.9-S125

ISO: DDM-2100AR-5.9-S125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJDDM-2100AR-5.9-S125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Round Milling, Copy Milling
Package Size 1
Insert Type Positive
Shipping State Michigan
Insert/Tool Tool
Made In USA No
Dimensional Specifications
Insert Size Ic 50
Machine Side Connection Type Weldon
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 8.1900 208.03MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.0000 25.40MM
Neck Length 5.9000 149.86MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RD
Fasteners & Connectors
Insert Screw CSW-3595
