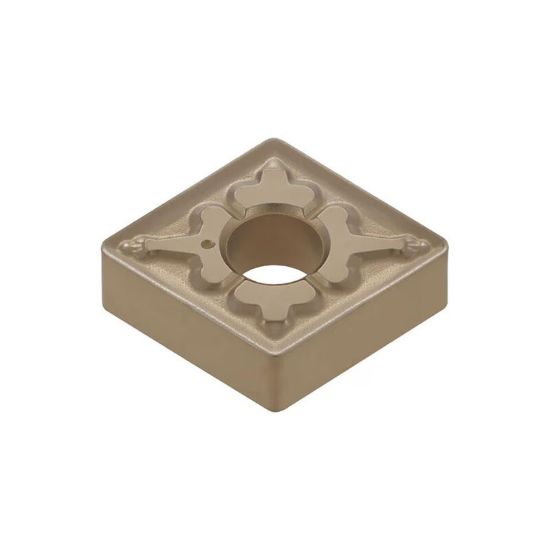

DIJET CNMG432 -UTCX50 Turning Insert 80.0° 0.031 Corner Radius Cermet

ANSI: CNMG432 -UTCX50

ISO: CNMG120408 -UTCX50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJCNMG 432 -UT CX50
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Grade and Coating Description

High nitrogen content & fine uniform hard structure. Excellent chip-resistance & wear-resistance. General purpose for steel.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Michigan
Package Size 10
Insert Application Finishing
Insert/Tool Insert
Grade CX50
Insert Type Negative
Application Turning Insert
Made In USA No
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 12 "43"
Cut Rating <40HRC Steel, Ductile Iron
Tool Material Cermet
Cutting & Machining Properties
Insert Style CN
Cutting Edge Mat Cermet
Insert Shape/Cutter Pocket Shape 80.0°
