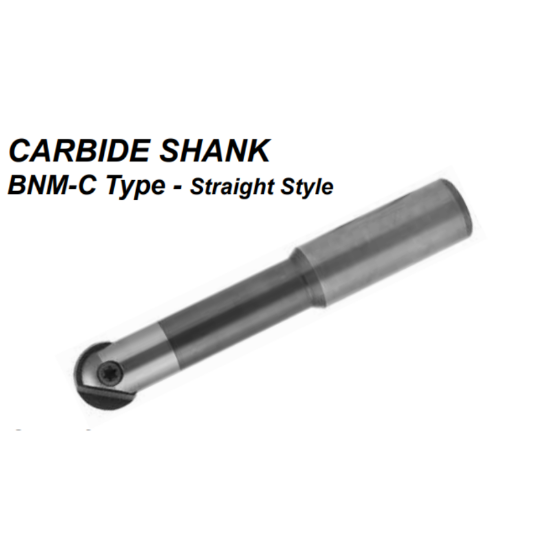

Picture of DIJET BNMM-100057S-S037C Ball Mill 0.375 Cutter Diameter Cylindrical 0.375 Shank 4.500 OAL 1 Flute

DIJET BNMM-100057S-S037C Ball Mill 0.375 Cutter Diameter Cylindrical 0.375 Shank 4.500 OAL 1 Flute

ANSI: BNMM-100057S-S037C

ISO: BNMM-100057S-S037C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJBNMM-100057S-S037C
Delivery date: 3-5 days
$486.51
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Shipping State Michigan
Package Size 1
Insert/Tool Tool
Made In USA No
Insert Type Neutral
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.3750 9.53MM
Insert Size Ic 80, 312
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 4.5000 114.30MM
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Insert Style BM,BN
Fasteners & Connectors
Insert Screw FSW-3007H
