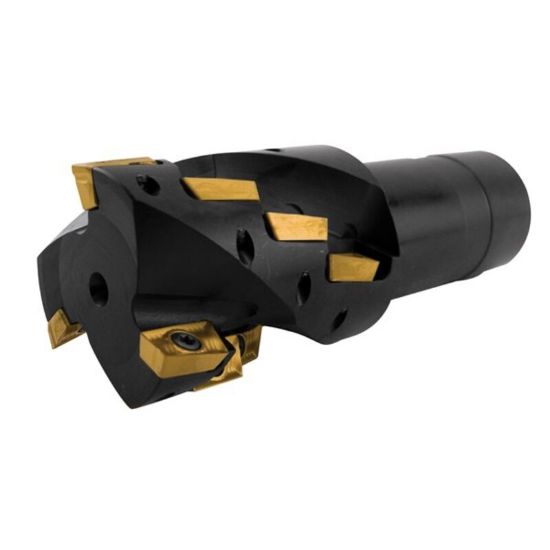

Picture of DIJET 25DXS-040-NCV5 Milling Cutter 90.0°, Corn Cob CAT 50 10.00 OAL 20 Flute

DIJET 25DXS-040-NCV5 Milling Cutter 90.0°, Corn Cob CAT 50 10.00 OAL 20 Flute

ANSI: 25DXS-040-NCV5

ISO: 25DXS-040-NCV5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJ25DXS-040-NCV5
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Insert Type Positive
Shipping State Michigan
Dimensional Specifications
Insert Size Ic 43
Depth Of Cut Max 4.0000
Tool Material Steel
Machine Side Connection Type CAT
Overall Len 10.0000 254.00MM
Flutes/Inserts 20
Length Of Cut 4.0000 101.60MM
Machine Side Connection Size 1.9685 50.00MM
Cutting & Machining Properties
Insert Style IM,IM
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw EXW-510
