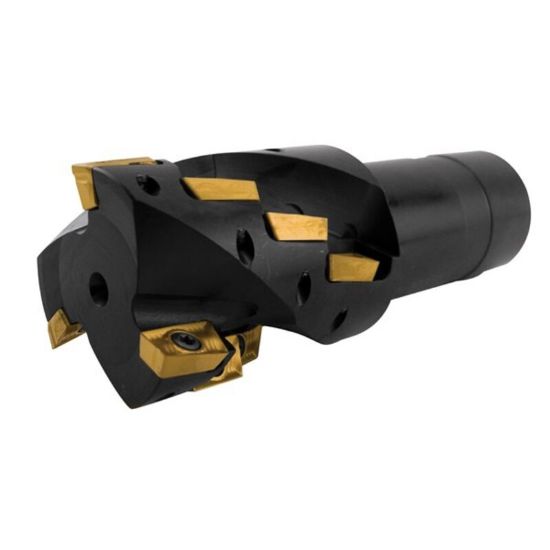

Picture of DIJET 125DXS-040-NW125 Milling Cutter 90.0°, Corn Cob Weldon 1.250 Shank 7.000 OAL 32 Flute

DIJET 125DXS-040-NW125 Milling Cutter 90.0°, Corn Cob Weldon 1.250 Shank 7.000 OAL 32 Flute

ANSI: 125DXS-040-NW125

ISO: 125DXS-040-NW125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJ125DXS-040-NW125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Long Edge Milling, Side Milling
Shipping State Michigan
Insert Application Roughing
Package Size 1
Made In USA No
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 32
Machine Side Connection Type Weldon
Length Of Cut 4.0000 101.60MM
Overall Len 7.0000 177.80MM
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 4.0000
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 32
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style IM,IM
Fasteners & Connectors
Insert Screw CSW-407
