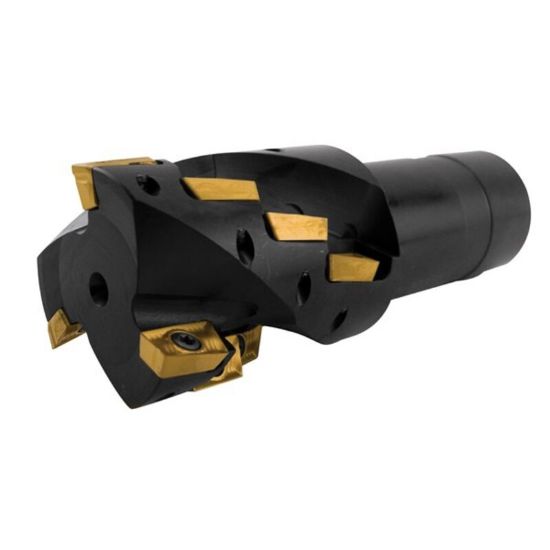

Picture of DIJET 125DXS-020-NW125 Milling Cutter 90.0°, Corn Cob Weldon 1.250 Shank 5.000 OAL 14 Flute

DIJET 125DXS-020-NW125 Milling Cutter 90.0°, Corn Cob Weldon 1.250 Shank 5.000 OAL 14 Flute

ANSI: 125DXS-020-NW125

ISO: 125DXS-020-NW125

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DIJET
SKU: DIJ125DXS-020-NW125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Made In USA No
Application Long Edge Milling, Side Milling
Shipping State Michigan
Package Size 1
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 14
Insert Size Ic 32
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Depth Of Cut Max 2.0000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style IM,IM
Fasteners & Connectors
Insert Screw CSW-407
