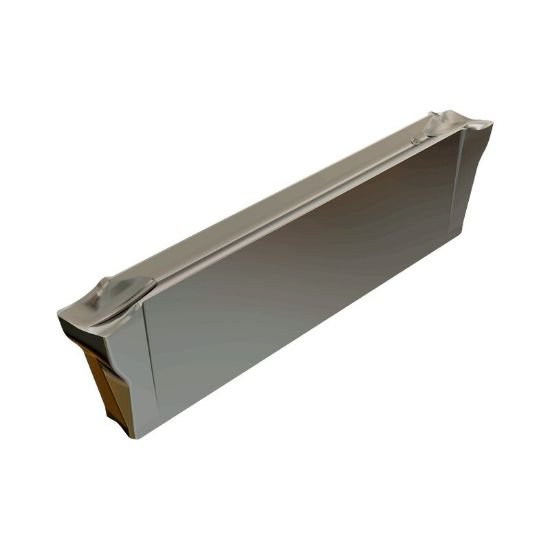

Picture of DGR 3100JS-15D IC1028 Iscar 6003053 Cut Off Insert 0.1220 3.10mm Wide 0.0010 0.03mm Radius

DGR 3100JS-15D IC1028 Iscar 6003053 Cut Off Insert 0.1220 3.10mm Wide 0.0010 0.03mm Radius

Part Number: ISC6003053 ISO: DGR 3100JS-15D IC1028 ANSI:DGR 3100JS-15D IC1028
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1082388
Vendor: Sussex Tool and Supply
$33.49
This product has a minimum quantity of 10

Description

ISCAR 6003053 Dog Bone Cut Off Positive TiAIN + TiN Roughing applications at low speed, high feed and interrupted cut. High resistance to mechanical and thermal shock.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 3
Cutting Width 0.1220 3.10MM
Geometry & Angles
Corner Radius 0.0010 0.03MM
Performance & Capacity
Cut Rating <30HRC Steel, Stainless Steel
Depth Of Cut Max 0.7090
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAIN + TiN
Grade IC1028
