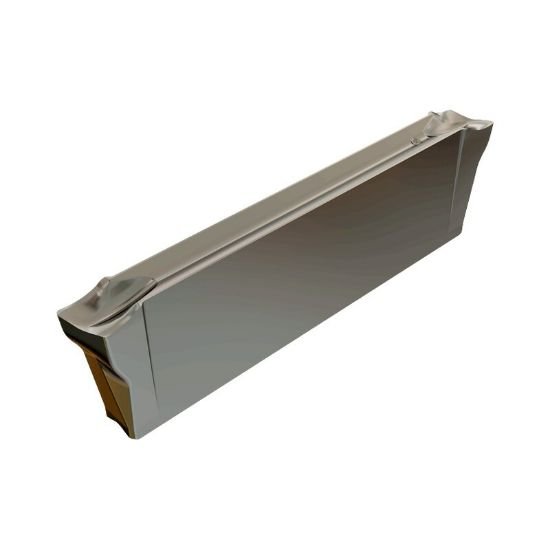

Picture of DGR 1400JS-15D IC908 Iscar 6003035 Cut Off Insert 0.0550 1.40mm Wide 0.0010 0.03mm Radius

DGR 1400JS-15D IC908 Iscar 6003035 Cut Off Insert 0.0550 1.40mm Wide 0.0010 0.03mm Radius

Part Number: ISC6003035 ISO: DGR 1400JS-15D IC908 ANSI:DGR 1400JS-15D IC908
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1082370
Vendor: Sussex Tool and Supply
$33.49
This product has a minimum quantity of 10

Description

ISCAR 6003035 Dog Bone Cut Off Positive TiAlN A tough submicron grain size substrate with a PVD coating, recommended for general use for diverse operations on materials such as steels, alloy steels, austenitic stainless steel and high temperature alloys at a wide range of cutting speeds. Features high wear resistance and chipping durability.
Products specifications
Attribute name Attribute value
General Information
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Insert/Tool INSERT
Cut Type General Purpose
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Type/Oriantation Clamp Down
Dimensions & Sizing
Insert Size Ic 1
Cutting Width 0.0550 1.40MM
Geometry & Angles
Corner Radius 0.0010 0.03MM
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, High Temp
Depth Of Cut Max 0.5510
Materials & Finish
Cutting Edge Mat Carbide
Coating TiAlN
Grade IC908
