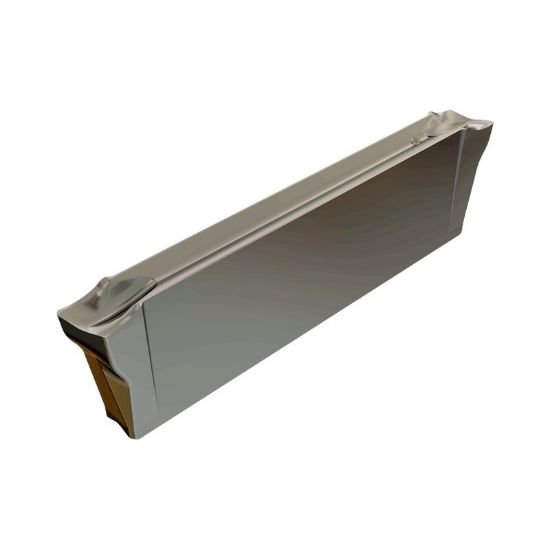

Picture of DGR 1400JS-15D IC1028 Iscar 6003077 Cut Off Insert 0.0550 1.40mm Wide 0.0010 0.03mm Radius

DGR 1400JS-15D IC1028 Iscar 6003077 Cut Off Insert 0.0550 1.40mm Wide 0.0010 0.03mm Radius

Part Number: ISC6003077 ISO: DGR 1400JS-15D IC1028 ANSI:DGR 1400JS-15D IC1028

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1082411
Vendor: Sussex Tool and Supply
$28.94
This product has a minimum quantity of 10
ISCAR 6003077 Dog Bone Cut Off Positive TiAIN + TiN Roughing applications at low speed, high feed and interrupted cut. High resistance to mechanical and thermal shock.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <30HRC Steel, Stainless Steel
Coating TiAIN + TiN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0010 0.03MM
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC1028
Insert Type Positive
Insert Size Ic 1
Depth Of Cut Max 0.5510
Insert Type/Oriantation Clamp Down
Cutting Width 0.0550 1.40MM
