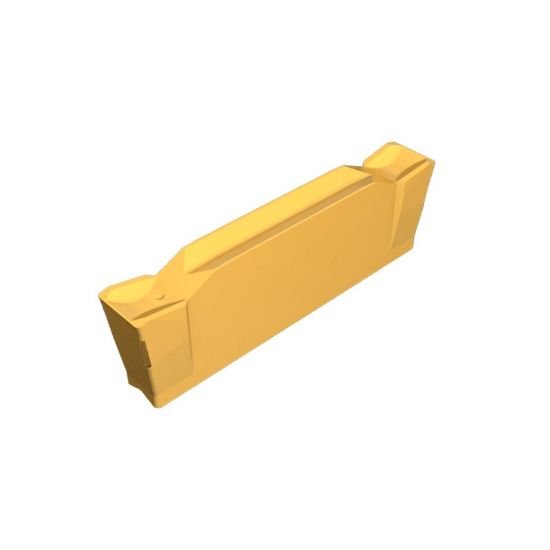

Picture of DGN 6303C IC20 Iscar 6002396 Cut Off,Grooving Insert 0.2500 6.35mm Wide 0.0140 0.36mm Radius

DGN 6303C IC20 Iscar 6002396 Cut Off,Grooving Insert 0.2500 6.35mm Wide 0.0140 0.36mm Radius

Part Number: ISC6002396 ISO: DGN 6303C IC20 ANSI:DGN 6303C IC20
Other inserts in this pocket
Enter your state to see the nearest shipper:
Lowest price
DGN 6303C IC1010 Iscar 3384583 Cut Off,Grooving Insert 0.1250 3.18mm Wide 0.0080 0.20mm Radius
DGN 6303C IC1010 Iscar 3384583 Cut Off,Grooving Insert 0.1250 3.18mm Wide 0.0080 0.20mm Radius
$19.02
View lower-priced option →
 See all 15 options →
Ships closest to you
Enter your state above to see the closest ship location.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1082095
Vendor: Sussex Tool and Supply
$31.17
This product has a minimum quantity of 10

Description

ISCAR 6002396 Dog Bone Cut Off,Grooving Positive Uncoated An uncoated carbide grade. Used for semi-finishing and semi-roughing of aluminum, cast iron and stainless steel. Used at low to medium speeds and feeds.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Gray Iron, High Temp
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0140 0.36MM
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC20
Insert Type Positive
Insert Size Ic 6
Insert Type/Oriantation Clamp Down
Brush Width 0.2500 6.35MM
