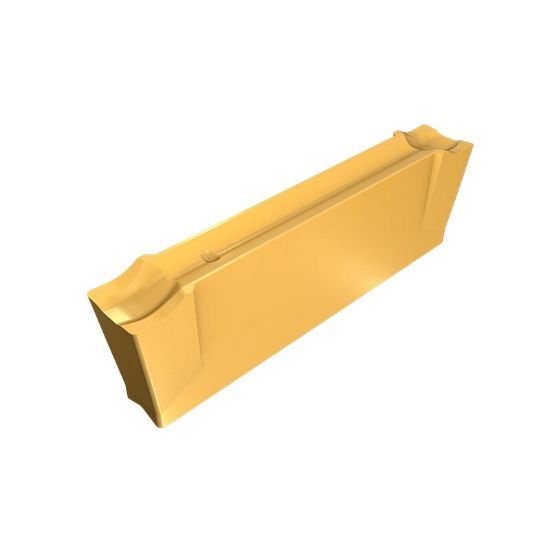

Picture of DGN 3102LFT IC928 Iscar 6099069 Cut Off,Grooving Insert 0.1220 3.10mm Wide 0.0080 0.20mm Radius

DGN 3102LFT IC928 Iscar 6099069 Cut Off,Grooving Insert 0.1220 3.10mm Wide 0.0080 0.20mm Radius

Part Number: ISC6099069 ISO: DGN 3102LFT IC928 ANSI:DGN 3102LFT IC928

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1084670
Vendor: Sussex Tool and Supply
$27.55
This product has a minimum quantity of 10
ISCAR 6099069 Dog Bone Cut Off,Grooving Positive TiAlN A tough substrate with PVD coating, suitable for machining steel and stainless steel at low to medium cutting speeds and moderate to high feeds. The grade is recommended for interrupted cuts and machining under unstable conditions.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating TiAlN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0080 0.20MM
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC928
Insert Type Positive
Insert Size Ic 3
Depth Of Cut Max 0.7090
Insert Type/Oriantation Clamp Down
Cutting Width 0.1220 3.10MM
