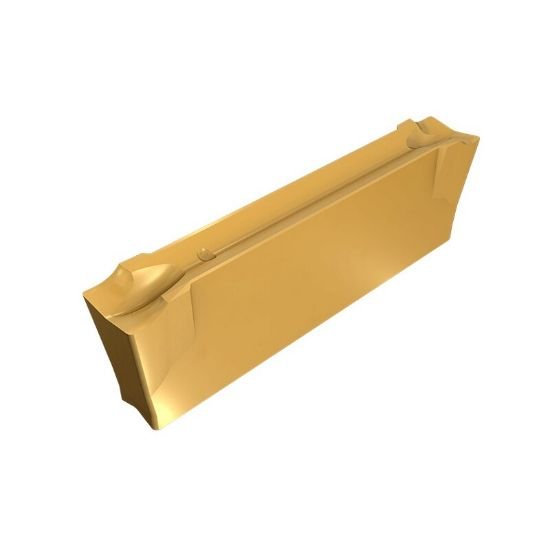

Picture of DGN 2202J IC1030 Iscar 3337128 Cut Off,Grooving Insert 0.0870 2.21mm Wide 0.0080 0.20mm Radius

DGN 2202J IC1030 Iscar 3337128 Cut Off,Grooving Insert 0.0870 2.21mm Wide 0.0080 0.20mm Radius

Part Number: ISC3337128 ISO: DGN 2202J IC1030 ANSI:DGN 2202J IC1030
Other inserts in this pocket
Enter your state to see the nearest shipper:
Lowest price
DGL 2202C-6D IC20 Iscar 6002325 Cut Off Insert 0.0870 2.21mm Wide 0.0080 0.20mm Radius
DGL 2202C-6D IC20 Iscar 6002325 Cut Off Insert 0.0870 2.21mm Wide 0.0080 0.20mm Radius
$24.44
View lower-priced option →
 See all 67 options →
Ships closest to you
Enter your state above to see the closest ship location.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1084045
Vendor: Sussex Tool and Supply
$31.86
This product has a minimum quantity of 10

Description

ISCAR 3337128 Dog Bone Cut Off,Grooving Positive TiAIN + TiN A high toughness and wear resistance PVD coated grade. Recommended for interrupted cut and heavy operations on stainless steel, high temperature and alloyed steel.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating <30HRC Steel, Stainless Steel
Coating TiAIN + TiN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0080 0.20MM
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC1030
Insert Type Positive
Insert Size Ic 2
Depth Of Cut Max 0.7090
Insert Type/Oriantation Clamp Down
Cutting Width 0.0870 2.21MM
