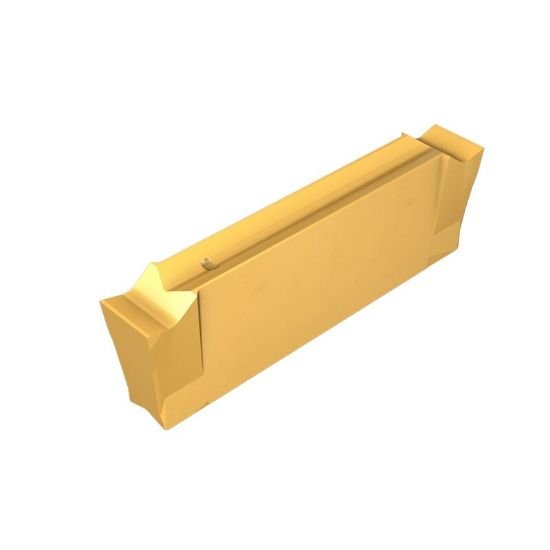

Picture of DGN 1500P IC508 Iscar 6002938 Cut Off,Grooving Insert 0.0590 1.50mm Wide 0.0020 0.05mm Radius

DGN 1500P IC508 Iscar 6002938 Cut Off,Grooving Insert 0.0590 1.50mm Wide 0.0020 0.05mm Radius

Part Number: ISC6002938 ISO: DGN 1500P IC508 ANSI:DGN 1500P IC508

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ISCAR
SKU: 1084375
Vendor: Sussex Tool and Supply
$27.55
This product has a minimum quantity of 10
ISCAR 6002938 Dog Bone Cut Off,Grooving Positive TiCN + TiN A broad-spectrum grade with a tough-submicron fine grain substrate and PVD coating. Designed for machining main types of engineering materials at various cutting speeds. Features excellent notch wear and built-up edge resistance. Suitable for interrupted cutting and machining under unfavorable conditions.
Products specifications
Attribute name Attribute value
Shipping State TEXAS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel, <48HRC Steel
Coating TiCN + TiN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0020 0.05MM
Insert Style DG
Insert Shape/Cutter Pocket Shape Dog Bone
Grade IC508
Insert Type Positive
Insert Size Ic 1
Depth Of Cut Max 0.7090
Insert Type/Oriantation Clamp Down
Cutting Width 0.0590 1.50MM
