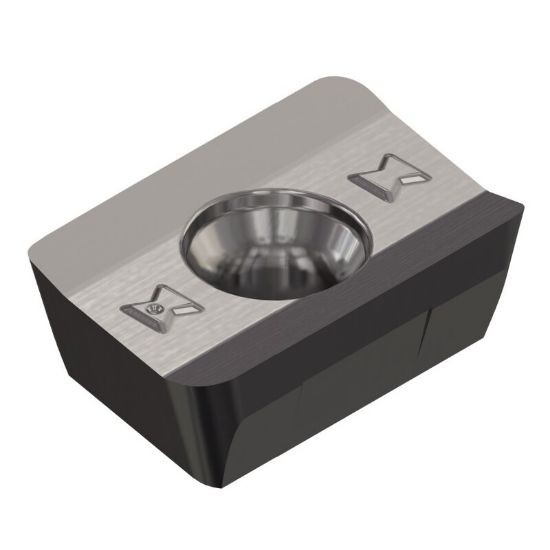

DAPRA XPET160412 DMP307 Milling Insert Paralelagram 0.047 Corner Radius AlTiN

ANSI: XPET160412 DMP307

ISO: XPET160412 DMP307

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP28740
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

NOT A STANDARD NOT RETURNABLE

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 10
Grade DMP307
Made In USA Yes
Coating AlTiN
Insert Type Positive
Insert/Tool Insert
Application Milling Insert
Shipping State Connecticut
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Insert Size Ic 16
Corner Radius 0.0472 1.20MM
Cutting & Machining Properties
Insert Style XP
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Parallelogram
