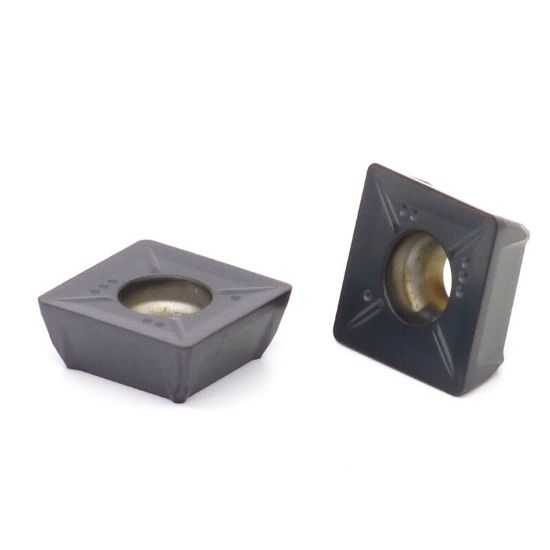

DAPRA SXEH432-T DMP25-HP Milling Insert Square 0.031 Corner Radius AlCrN

ANSI: SXEH432-T DMP25-HP

ISO: SXEH432-T DMP25-HP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP23090
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

NOT A STANDARD NOT RETURNABLE

Products specifications
Attribute name Attribute value
General Product Information
Coating AlCrN
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 10
Grade DMP25-HP
Made In USA Yes
Insert/Tool Insert
Application Milling Insert
Shipping State Connecticut
Dimensional Specifications
Corner Radius 0.0310 0.79MM
Insert Size Ic 43
Cut Rating <40HRC Steel, Ductile Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SX
Cutting Edge Mat Carbide
