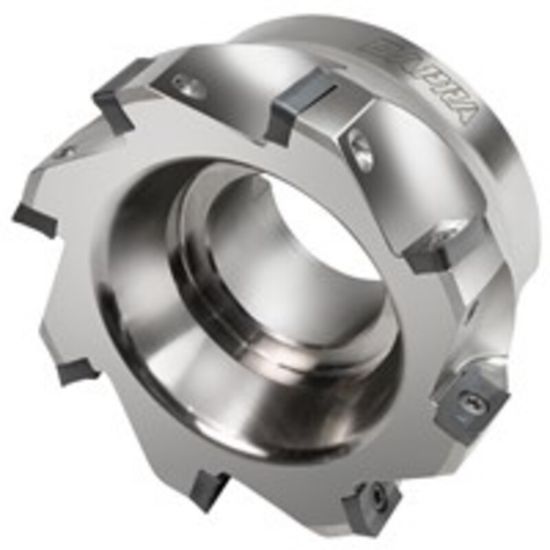

Picture of DAPRA SSSM80-27-R55-6 90.0°, Face Mill 3.150 Cutter Diameter Screw On M12 Shank 1.970 OAL 6 Flute

DAPRA SSSM80-27-R55-6 90.0°, Face Mill 3.150 Cutter Diameter Screw On M12 Shank 1.970 OAL 6 Flute

ANSI: SSSM80-27-R55-6

ISO: SSSM80-27-R55-6

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP22130
Delivery date: 3-5 days
$336.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Face Milling, Pocket Milling, Side Milling
Shipping State Connecticut
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Cutter Dia 3.1500 80.01MM
Machine Side Connection Type Screw On
Machine Side Connection Size M12
Insert Size Ic 16
Flutes/Inserts 6
Tool Material Steel
Overall Len 1.9700 50.04MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AP,XP
