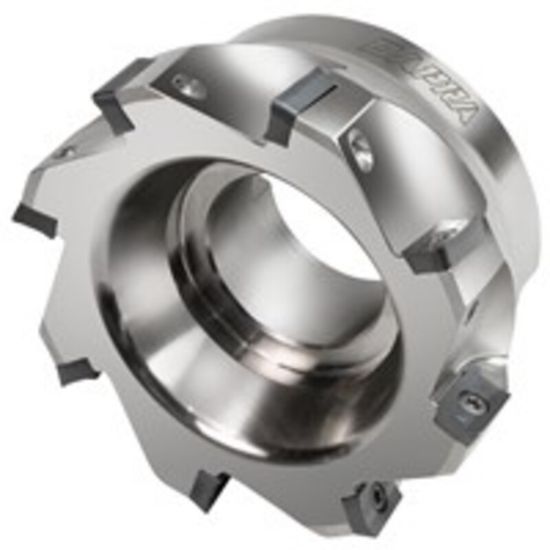

Picture of DAPRA SSSM50-22-R55-4C 90.0°, Face Mill 1.967 Cutter Diameter Screw On M10 Shank 1.490 OAL 4 Flute

DAPRA SSSM50-22-R55-4C 90.0°, Face Mill 1.967 Cutter Diameter Screw On M10 Shank 1.490 OAL 4 Flute

ANSI: SSSM50-22-R55-4C

ISO: SSSM50-22-R55-4C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP22105
Delivery date: 3-5 days
$354.47

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Made In USA Yes
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Connecticut
Dimensional Specifications
Machine Side Connection Size M10
Insert Size Ic 16
Overall Len 1.4900 37.85MM
Machine Side Connection Type Screw On
Flutes/Inserts 4
Tool Material Steel
Cutter Dia 1.9670 49.96MM
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP,XP
