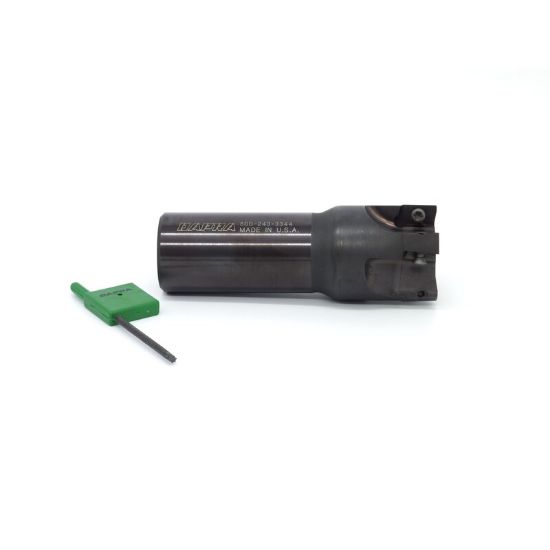

Picture of DAPRA SSEM40-32-R55-4 90.0°, End Mill 1.575 Cutter Diameter Weldon 1.259 Shank 4.530 OAL 4 Flute

DAPRA SSEM40-32-R55-4 90.0°, End Mill 1.575 Cutter Diameter Weldon 1.259 Shank 4.530 OAL 4 Flute

ANSI: SSEM40-32-R55-4

ISO: SSEM40-32-R55-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP22060
Delivery date: 3-5 days
$230.93

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Pocket Milling, Side Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA Yes
Insert/Tool Tool
Insert Type Positive
Shipping State Connecticut
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 4
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Insert Size Ic 16
Machine Side Connection Type Weldon
Overall Len 4.5300 115.06MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AP,XP
