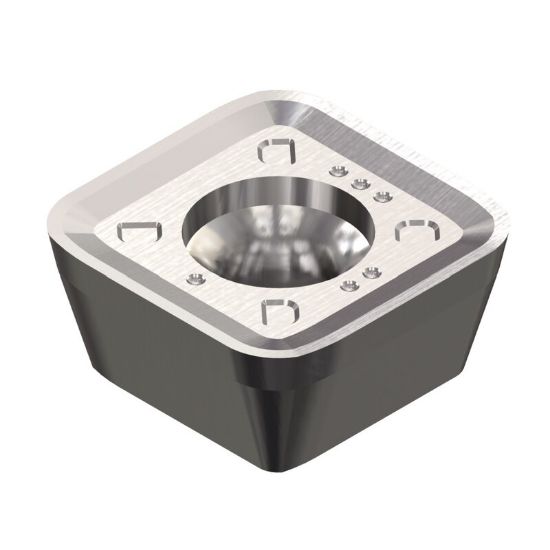

DAPRA RF10-D DMP25-GLH Milling Insert Square 0.075 Corner Radius AlCrN

ANSI: RF10-D DMP25-GLH

ISO: RF10-D DMP25-GLH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP63260
Delivery date: 3-5 days
$11.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

Premium high-temperature grade. Unbeatable performance and wear resistance in high-heat applications such as higher speed machining in steels (< 44 Rc) and ductile irons.

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application Roughing, Semi Finishing
Insert/Tool Insert
Application Milling Insert
Shipping State Connecticut
Made In USA Yes
Grade DMP25-GLH
Coating AlCrN
Package Size 10
Dimensional Specifications
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron
Depth Of Cut Max 0.0450
Insert Size Ic 10
Corner Radius 0.0750 1.91MM
Cutting & Machining Properties
Insert Style RF
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Square
