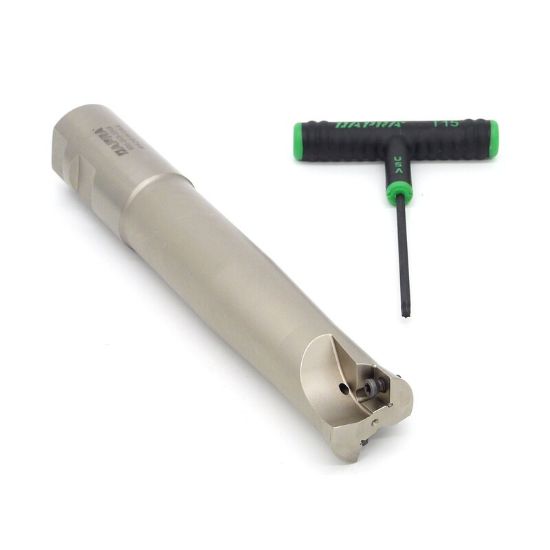

Picture of DAPRA HFEM125-500-R4-2 Feed Mill 1.250 Cutter Diameter Weldon 1.250 Shank 7.280 OAL 2 Flute

DAPRA HFEM125-500-R4-2 Feed Mill 1.250 Cutter Diameter Weldon 1.250 Shank 7.280 OAL 2 Flute

ANSI: HFEM125-500-R4-2

ISO: HFEM125-500-R4-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP60610
Delivery date: 3-5 days
$411.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Copy Milling, Feed Milling, Ramp Milling
Made In USA Yes
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Shipping State Connecticut
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Insert Size Ic 12
Flutes/Inserts 2
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 7.2800 184.91MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style RF
Hand R/L Right
