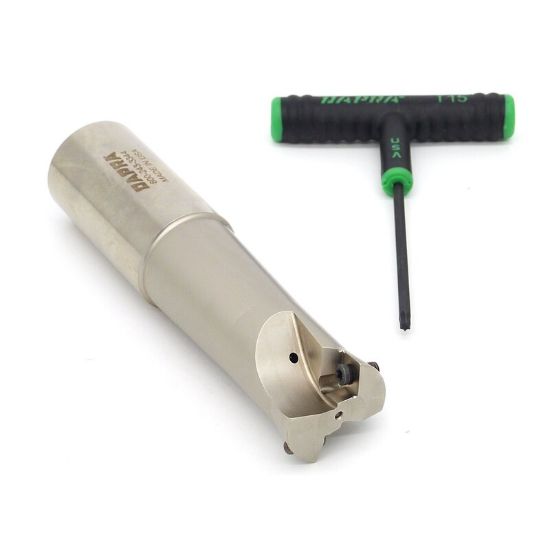

Picture of DAPRA HFEM125-300-R4-2 Feed Mill 1.250 Cutter Diameter Weldon 1.250 Shank 5.280 OAL 2 Flute

DAPRA HFEM125-300-R4-2 Feed Mill 1.250 Cutter Diameter Weldon 1.250 Shank 5.280 OAL 2 Flute

ANSI: HFEM125-300-R4-2

ISO: HFEM125-300-R4-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP60600
Delivery date: 3-5 days
$411.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Package Size 1
Insert Type Positive
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Shipping State Connecticut
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 12
Flutes/Inserts 2
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Tool Material Steel
Overall Len 5.2800 134.11MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style RF
Hand R/L Right
