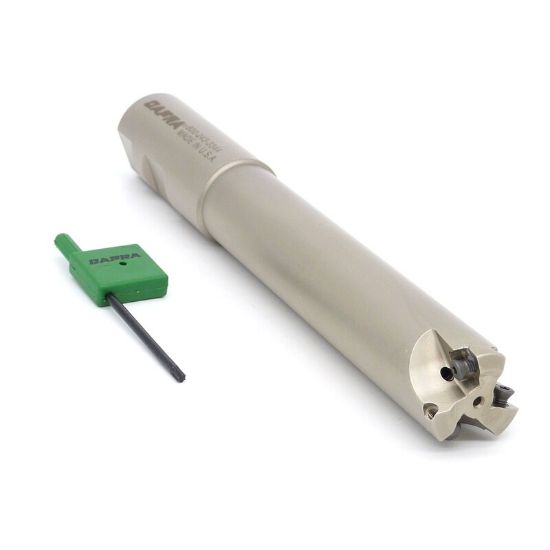

Picture of DAPRA HFEM100-450-R2-3 Feed Mill 1.000 Cutter Diameter Weldon 1.000 Shank 6.750 OAL 3 Flute

DAPRA HFEM100-450-R2-3 Feed Mill 1.000 Cutter Diameter Weldon 1.000 Shank 6.750 OAL 3 Flute

ANSI: HFEM100-450-R2-3

ISO: HFEM100-450-R2-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP60070
Delivery date: 3-5 days
$330.23

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Type Positive
Shipping State Connecticut
Made In USA Yes
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 8
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Overall Len 6.7500 171.45MM
Cutting & Machining Properties
Insert Style RF
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
