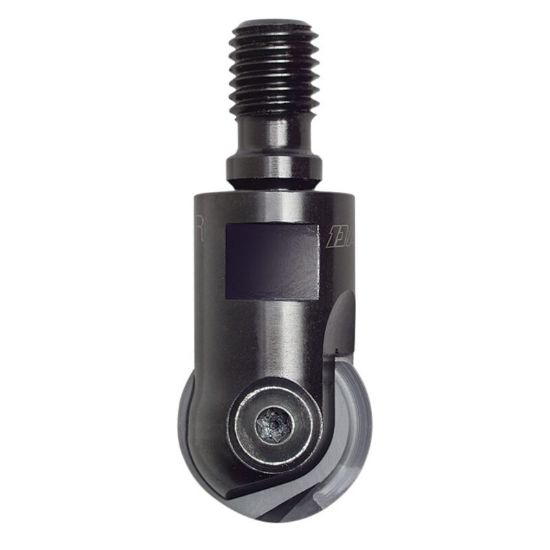

Picture of DAPRA GWR12-150-12-RZ Ball Mill,Back Draft 0.472 Cutter Diameter Weldon 0.472 Shank 5.910 OAL

DAPRA GWR12-150-12-RZ Ball Mill,Back Draft 0.472 Cutter Diameter Weldon 0.472 Shank 5.910 OAL

ANSI: GWR12-150-12-RZ

ISO: GWR12-150-12-RZ

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP50020
Delivery date: 3-5 days
$194.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Application Profile Milling, Copy Milling
Insert Type Neutral
Shipping State Connecticut
Made In USA Yes
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Cutter Dia 0.4720 11.99MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.4724 12.00MM
Tool Material Steel
Overall Len 5.9100 150.11MM
Insert Size Ic 15
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Style BD,BN,FB,HB,RD,HF
Hand R/L Right
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern External
Fasteners & Connectors
Insert Screw GWS 12
