  • DAPRA CC-SSER1000-8000-R55-2 90.0°, End Mill 1.000 Cutter Diameter Weldon 1.250 Shank 10.28 OAL 2 Flute

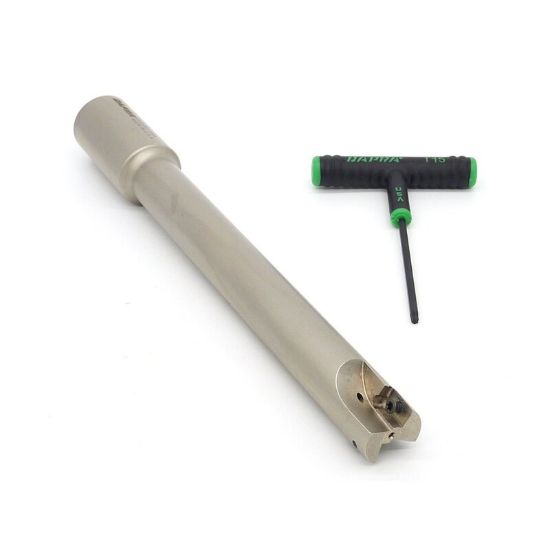

Picture of DAPRA CC-SSER1000-8000-R55-2 90.0°, End Mill 1.000 Cutter Diameter Weldon 1.250 Shank 10.28 OAL 2 Flute

DAPRA CC-SSER1000-8000-R55-2 90.0°, End Mill 1.000 Cutter Diameter Weldon 1.250 Shank 10.28 OAL 2 Flute

ANSI: CC-SSER1000-8000-R55-2

ISO: CC-SSER1000-8000-R55-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP20760
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Pocket Milling, Face Milling, Slot Milling
Shipping State Connecticut
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Machine Side Connection Type Weldon
Insert Size Ic 16
Cutter Dia 1.0000 25.40MM
Overall Len 10.2800 261.11MM
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.2500 31.75MM
Tool Material Carbide Core
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style AP,XP
