  • DAPRA BCSM3000-1000-R55-5 15.0°, Face Mill 3.000 Cutter Diameter Face Mill 1.000 Shank 2.000 OAL 5 Flute

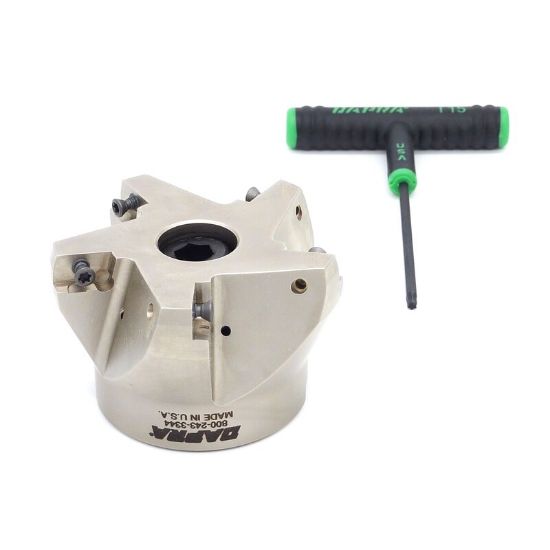

Picture of DAPRA BCSM3000-1000-R55-5 15.0°, Face Mill 3.000 Cutter Diameter Face Mill 1.000 Shank 2.000 OAL 5 Flute

DAPRA BCSM3000-1000-R55-5 15.0°, Face Mill 3.000 Cutter Diameter Face Mill 1.000 Shank 2.000 OAL 5 Flute

ANSI: BCSM3000-1000-R55-5

ISO: BCSM3000-1000-R55-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP22240
Delivery date: 3-5 days
$548.45

Details

BACK CORNER MILL UTALIZING FREE CORNERS ON A STYLE INSERTS

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Connecticut
Made In USA Yes
Insert Type Positive
Application Face Milling
Package Size 1
Insert Application Light
Dimensional Specifications
Flutes/Inserts 5
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Overall Len 2.0000 50.80MM
Cutter Dia 3.0000 76.20MM
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Cutting & Machining Properties
Insert Style AP,XP
Hand R/L Right
Insert Shape/Cutter Pocket Shape Parallelogram
