  • DAPRA BCSM2000-0750-R35-4 15.0°, Face Mill 2.000 Cutter Diameter Face Mill 0.750 Shank 1.500 OAL 4 Flute

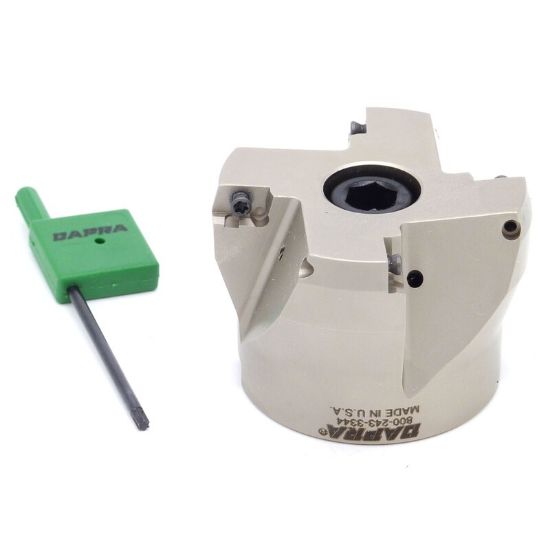

Picture of DAPRA BCSM2000-0750-R35-4 15.0°, Face Mill 2.000 Cutter Diameter Face Mill 0.750 Shank 1.500 OAL 4 Flute

DAPRA BCSM2000-0750-R35-4 15.0°, Face Mill 2.000 Cutter Diameter Face Mill 0.750 Shank 1.500 OAL 4 Flute

ANSI: BCSM2000-0750-R35-4

ISO: BCSM2000-0750-R35-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP22210
Delivery date: 3-5 days
$418.27

Details

BACK CORNER MILL UTALIZING FREE CORNERS ON A STYLE INSERTS

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Light
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Package Size 1
Shipping State Connecticut
Made In USA Yes
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Overall Len 1.5000 38.10MM
Insert Size Ic 10
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Face Mill/Shell Mill
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style AP,XP
Hand R/L Right
