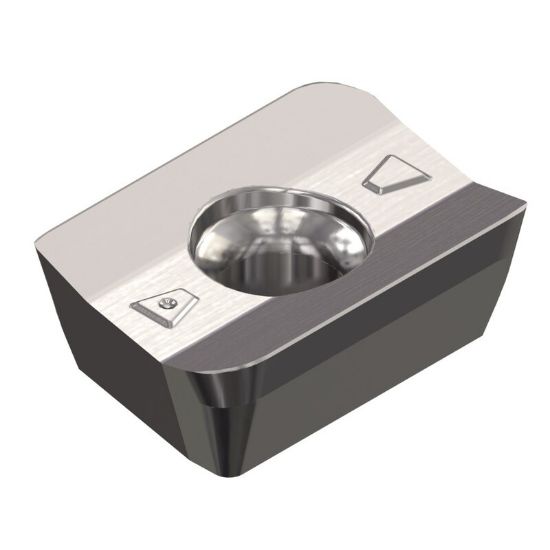

DAPRA APET160408 DMP35HP Milling Insert Paralelagram 0.031 Corner Radius AlCrN

ANSI: APET160408 DMP35HP

ISO: APET160408 DMP35HP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DAPRA
SKU: DAP25880
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

NOT A STANDARD NOT RETURNABLE

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 10
Grade DMP35-HP
Insert Type Positive
Application Milling Insert
Shipping State Connecticut
Insert/Tool Insert
Made In USA Yes
Coating AlCrN
Dimensional Specifications
Corner Radius 0.0315 0.80MM
Insert Size Ic 16
Cut Rating High Temp, Stainless Steel, Titanium
Cutting & Machining Properties
Insert Style AP
Insert Shape/Cutter Pocket Shape Parallelogram
Cutting Edge Mat Carbide
