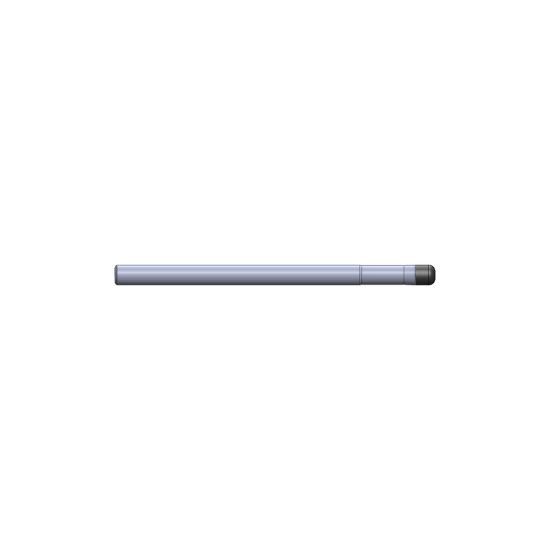

Picture of CRYSTAllUME P820-200627-1 End Mill Corner Radius High Helix Mold Makers 0.0620 End 0.187 Diameter 0.187 Shank 3.000 OAL 0.187 LOC4 Flute Diamond

CRYSTAllUME P820-200627-1 End Mill Corner Radius High Helix Mold Makers 0.0620 End 0.187 Diameter 0.187 Shank 3.000 OAL 0.187 LOC4 Flute Diamond

Part Number: CRYP820-200627-1
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1217681
Vendor: Sussex Tool and Supply
$102.80

Description

CRYSTALLUME End Mill Corner Radius High Helix Mold Makers 0.0620 End 0.187 Diameter 0.187 Shank 3.000 OAL 0.187 LOC4 Flute Diamond Carbide By applying diamond coatings to your metal parts you can increase lifetime and minimize maintenance related downtime due to the replacement of high wear parts. In addition, any process parts enhanced by a wear resistant coating like Composite Diamond Coating® will produce more consistent product over an extended period of time. Most metal finishers agree that the presence of this unique coating may also allow new materials with other performance or cost advantages to be utilized.
Products specifications
Attribute name Attribute value
General Information
Shipping State California
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Long / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.0000 76.20MM
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Tool Dia 0.1875 4.76MM - 3/16
Length Of Cut 0.1875 4.76MM
Neck Length 0.6870 17.45MM
Geometry & Angles
Corner Radius 0.0620 1.57MM
Helix Angle 30
Performance & Capacity
Cut Rating Graphite
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating Diamond
