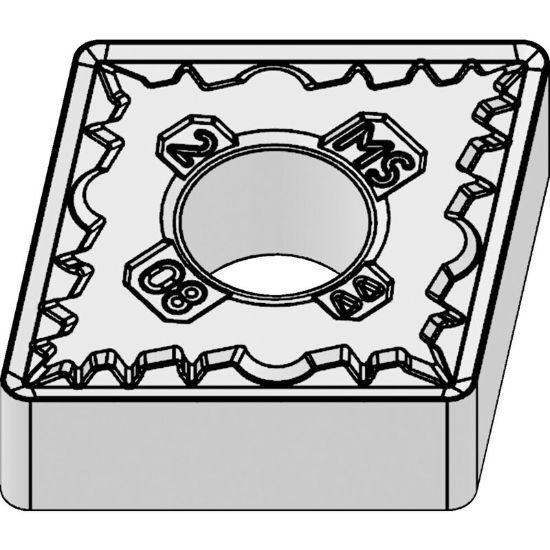

Picture of CNMG432MS WU10HT Widia/Kennametal CNMG120408MS WU10HT 80.0° Negative Carbide 0.0310 0.79mm Radius Medium, Semi Finishing

CNMG432MS WU10HT Widia/Kennametal CNMG120408MS WU10HT 80.0° Negative Carbide 0.0310 0.79mm Radius Medium, Semi Finishing

Part Number: WID5908747 ISO: CNMG120408MS WU10HT ANSI:CNMG432MS WU10HT
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1075871
Vendor: Sussex Tool and Supply
$13.41
This product has a minimum quantity of 10

Description

WIDIA CNMG120408MS WU10HT Negative 80.0 ° Insert Medium, Semi Finishing A hard, low binder content, unalloyed WC/Co fine-grained uncoated grade. Exceptional edge wear resistance combined with very high strength for machining titanium, cast irons, austenitic stainless steels, non-ferrous metals, non-metals, and most high-temperature alloys. Superior thermal deformation and depth-of-cut notch resistance. The grain structure is well controlled for minimal pits and flaws, which contributes to long, reliable service.
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Insert
Insert/Tool INSERT
Cut Type Medium, Semi Finishing
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Insert Type Negative
Dimensions & Sizing
Insert Size Ic 12 "43"
Geometry & Angles
Corner Radius 0.0310 0.79MM
Performance & Capacity
Cut Rating Stainless Steel, High Temp, Titanium
Materials & Finish
Cutting Edge Mat Carbide
Grade WU10HT
Compatibility & Fit
Insert Fits 80.0°
